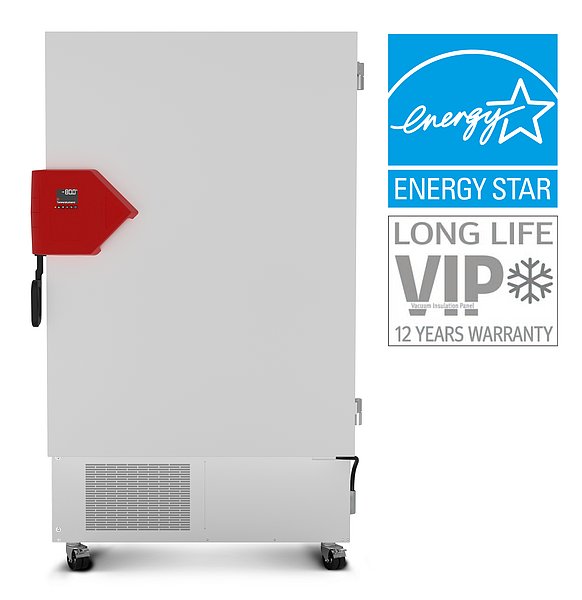

Freezers de temperatura ultrabaixa - Série UF V

Freezers de temperatura ultrabaixa - Série UF V - Image 2

Freezers de temperatura ultrabaixa – Série UF V

ESCOLHER MODELO / CAPACIDADE:

Limpar

Descrição

O freezer de ultra baixa temperatura BINDER garante o armazenamento seguro de amostras a -90 ° C. Combina excelente respeito pelo meio ambiente com baixo consumo de energia, operação conveniente e um conceito de segurança individual.

Benefícios

Menor consumo de energia em sua classe
Refrigerantes ecológicos R-290 e R-170
Isolamento térmico eficiente com painéis de isolamento a vácuo
Interior à prova de ferrugem feito totalmente de aço inoxidável

Características importantes

Faixa de temperatura: -90 ° C a -40 ° C
Menor consumo de energia em sua classe
Unidade de resfriamento de compressor em cascata poderosa
Refrigerantes ecológicos R-290 e R-170
Isolamento térmico eficiente com painéis de isolamento a vácuo
O conceito inovador de junta da porta reduz o acúmulo de gelo
Maçaneta ergonômica da porta
Interior à prova de ferrugem feito totalmente de aço inoxidável
Portas internas removíveis feitas de aço inoxidável
3 prateleiras de aço inoxidável proporcionando posicionamento flexível
Resfriamento de água (dependendo da versão)
Contato de alarme de tensão zero para sistema de alarme interno
Registrador de dados interno, os valores medidos podem ser lidos em formato aberto via USB
Interface Ethernet
Contador de horas de operação
2 portas de acesso, Ø 28 mm, traseira

Dados técnicos

Modelo UF V 500

Modelo UF V 700

Modelo UF V 500

Designation	UFV500-230V¹	UFV500-230V-W¹	UFV500UL-120V¹	UFV500UL-240V¹
Option model	Standard	Water cooling	Standard	Standard
Order number	9020-0347	9020-0349	9020-0351	9020-0353
Data
Serie	UF V	UF V	UF V	UF V
Performance Data Temperature
Cooling down time from 22 °C to -80 °C [min]	360	360	360	360
Temperature fluctuation at -80 °C [± K]	1.5	1.5	1.5	1.5
Temperature range	-90…-40	-90…-40	-90…-40	-90…-40
Temperature variation at -80 °C [± K]	2.5	2.5	2.5	2.5
Warm-up time during power failure from -80 °C / -122 °F to -60 °C / -76 °F [min]	230	230	230	230
Electrical data
Nominal power [kW]	1.6	1.6	1.4	1.6
Phase (Nominal voltage)	1~	1~	1~	1~
Power frequency [Hz]	50	50	60	60
Rated Voltage [V]	230	230	120	240
Unit fuse [A]	10	10	13	10
Doors
Unit doors	1	1	1	1
Housing dimensions not incl. fittings and connections
Depth net [mm]	938	938	938	938
Height net [mm]	1966	1966	1966	1966
Width net [mm]	826	826	826	826
Internal Dimensions
Depth [mm]	605	605	605	605
Height [mm]	1300	1300	1300	1300
Width [mm]	606	606	606	606
Measures
Interior volume [L]	477	477	477	477
Net weight of the unit (empty) [kg]	247	247	247	247
Permitted load [kg]	200	200	200	200
Permitted load of individual compartment [kg]	50	50	50	50
Wall clearance back [mm]	100	100	100	100
Wall clearance sidewise [mm]	250	250	250	250
Environment-specific data
Energy consumption at set-point -80 °C and ambient temperature = 21 °C [kWh/d]	7.9	7.9	7.9	7.9
Sound-pressure level [dB(A)]	47	47	47	47
Fixtures
Number of shelves (std./max.)	3/13	3/13	3/13	3/13
Load-variants
Cryoboxes, 50 mm	352	352	352	352
Freezer racks per compartment	4	4	4	4
Performance Data Temperature
Cooling down time from 22 °C to -80 °C [min]	360	360	360	360
Temperature fluctuation at -80 °C [± K]	1.5	1.5	1.5	1.5
Temperature range	-90…-40	-90…-40	-90…-40	-90…-40
Temperature variation at -80 °C [± K]	2.5	2.5	2.5	2.5
Warm-up time during power failure from -80 °C / -122 °F to -60 °C / -76 °F [min]	230	230	230	230
Electrical data
Nominal power [kW]	1.6	1.6	1.4	1.6
Phase (Nominal voltage)	1~	1~	1~	1~
Power frequency [Hz]	50	50	60	60
Rated Voltage [V]	230	230	120	240
Unit fuse [A]	10	10	13	10
Doors
Unit doors	1	1	1	1
Housing dimensions not incl. fittings and connections
Depth net [in]	36.96	36.96	36.96	36.96
Height net [in]	77.5	77.5	77.5	77.5
Width net [in]	32.54	32.54	32.54	32.54
Internal Dimensions
Depth [in]	23.84	23.84	23.84	23.84
Height [in]	51.2	51.2	51.2	51.2
Width [in]	23.88	23.88	23.88	23.88
Measures
Interior volume [cu.ft.]	16.8	16.8	16.8	16.8
Net weight of the unit (empty) [lbs]	545	545	545	545
Permitted load [lbs]	441	441	441	441
Permitted load of individual compartment [lbs]	110	110	110	110
Wall clearance back [in]	3.94	3.94	3.94	3.94
Wall clearance sidewise [in]	9.85	9.85	9.85	9.85
Environment-specific data
Energy consumption at set-point -80 °C and ambient temperature = 21 °C [kWh/d]	7.9	7.9	7.9	7.9
Sound-pressure level [dB(A)]	47	47	47	47
Fixtures
Number of shelves (std./max.)	3/13	3/13	3/13	3/13
Load-variants
Cryoboxes, 50 mm	352	352	352	352
Freezer racks per compartment	4	4	4	4

Modelo UF V 700

Designation	UFV700-230V¹	UFV700-230V-W¹	UFV700UL-120V¹	UFV700UL-240V¹
Option model	Standard	Water cooling	Standard	Standard
Order number	9020-0348	9020-0350	9020-0352	9020-0354
Data
Serie	UF V	UF V	UF V	UF V
Performance Data Temperature
Cooling down time from 22 °C to -80 °C [min]	450	450	450	450
Temperature fluctuation at -80 °C [± K]	1.5	1.5	1.5	1.5
Temperature range	-90…-40	-90…-40	-90…-40	-90…-40
Temperature variation at -80 °C [± K]	2.5	2.5	2.5	2.5
Warm-up time during power failure from -80 °C / -122 °F to -60 °C / -76 °F [min]	250	250	250	250
Electrical data
Nominal power [kW]	1.6	1.6	1.4	1.6
Phase (Nominal voltage)	1~	1~	1~	1~
Power frequency [Hz]	50	50	60	60
Rated Voltage [V]	230	230	120	240
Unit fuse [A]	10	10	13	10
Doors
Unit doors	1	1	1	1
Housing dimensions not incl. fittings and connections
Depth net [mm]	938	938	938	938
Height net [mm]	1966	1966	1966	1966
Width net [mm]	1110	1110	1110	1110
Internal Dimensions
Depth [mm]	605	605	605	605
Height [mm]	1300	1300	1300	1300
Width [mm]	890	890	890	890
Measures
Interior volume [L]	700	700	700	700
Net weight of the unit (empty) [kg]	289	289	289	289
Permitted load [kg]	200	200	200	200
Permitted load of individual compartment [kg]	50	50	50	50
Wall clearance back [mm]	100	100	100	100
Wall clearance sidewise [mm]	250	250	250	250
Environment-specific data
Average heat dissipation at set-point -80 °C and ambient temperature = 21 °C [W]	340	340	340	340
Energy consumption at set-point -80 °C and ambient temperature = 21 °C [kWh/d]	8.1	8.1	8.1	8.1
Sound-pressure level [dB(A)]	47	47	47	47
Fixtures
Number of shelves (std./max.)	3/13	3/13	3/13	3/13
Load-variants
Cryoboxes, 50 mm	528	528	528	528
Freezer racks per compartment	6	6	6	6
Performance Data Temperature
Cooling down time from 22 °C to -80 °C [min]	450	450	450	450
Temperature fluctuation at -80 °C [± K]	1.5	1.5	1.5	1.5
Temperature range	-90…-40	-90…-40	-90…-40	-90…-40
Temperature variation at -80 °C [± K]	2.5	2.5	2.5	2.5
Warm-up time during power failure from -80 °C / -122 °F to -60 °C / -76 °F [min]	250	250	250	250
Electrical data
Nominal power [kW]	1.6	1.6	1.4	1.6
Phase (Nominal voltage)	1~	1~	1~	1~
Power frequency [Hz]	50	50	60	60
Rated Voltage [V]	230	230	120	240
Unit fuse [A]	10	10	13	10
Doors
Unit doors	1	1	1	1
Housing dimensions not incl. fittings and connections
Depth net [in]	36.96	36.96	36.96	36.96
Height net [in]	77.5	77.5	77.5	77.5
Width net [in]	43.7	43.7	43.7	43.7
Internal Dimensions
Depth [in]	23.84	23.84	23.84	23.84
Height [in]	51.2	51.2	51.2	51.2
Width [in]	35.07	35.07	35.07	35.07
Measures
Interior volume [cu.ft.]	24.7	24.7	24.7	24.7
Net weight of the unit (empty) [lbs]	637	637	637	637
Permitted load [lbs]	441	441	441	441
Permitted load of individual compartment [lbs]	110	110	110	110
Wall clearance back [in]	3.94	3.94	3.94	3.94
Wall clearance sidewise [in]	9.85	9.85	9.85	9.85
Environment-specific data
Average heat dissipation at set-point -80 °C and ambient temperature = 21 °C [W]	340	340	340	340
Energy consumption at set-point -80 °C and ambient temperature = 21 °C [kWh/d]	8.1	8.1	8.1	8.1
Sound-pressure level [dB(A)]	47	47	47	47
Fixtures
Number of shelves (std./max.)	3/13	3/13	3/13	3/13
Load-variants
Cryoboxes, 50 mm	528	528	528	528
Freezer racks per compartment	6	6	6	6
